LET'S ASSEMBLE YOUR TRIKE

HERE'S WHAT YOU'LL FIND
READY TO UNBOX?

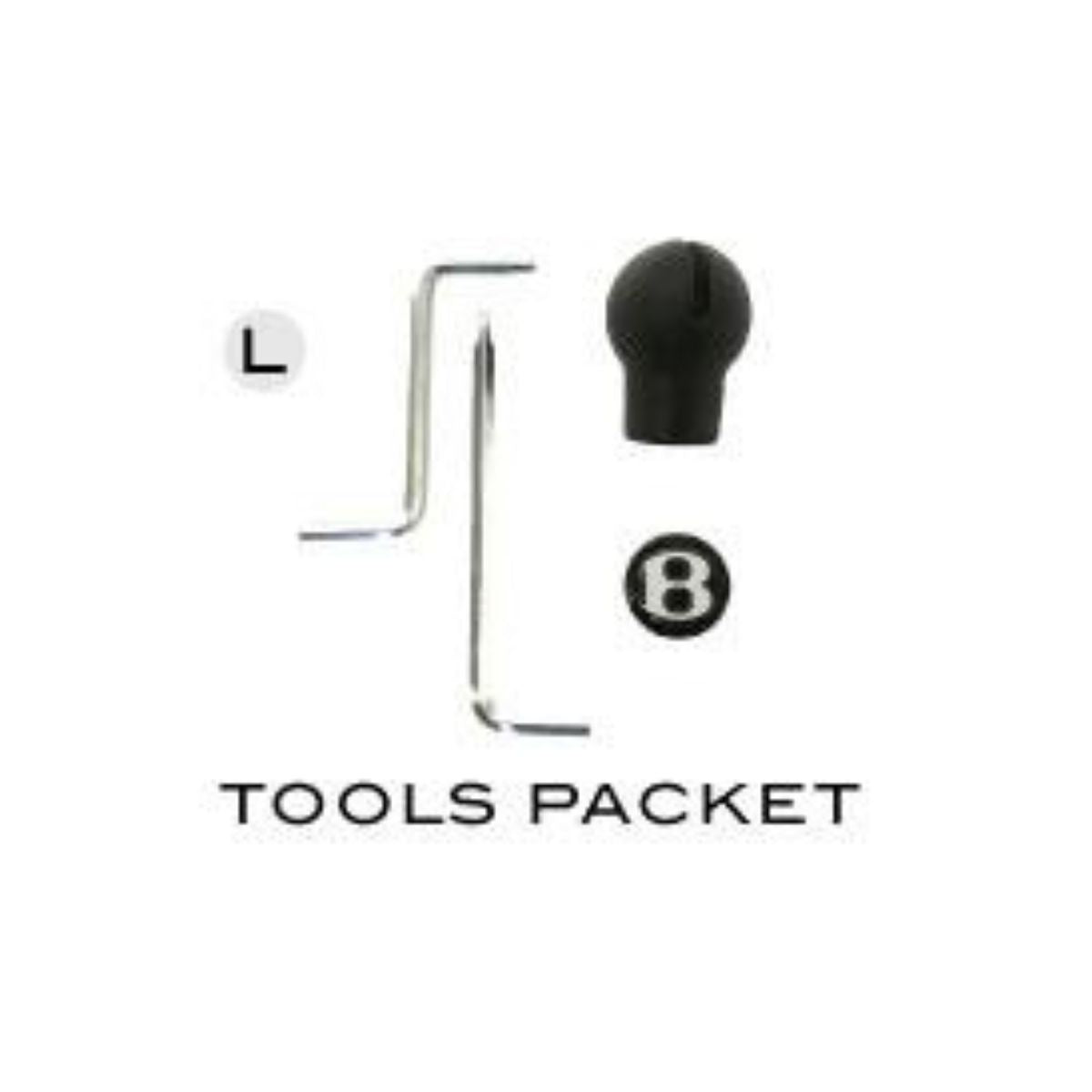

Every tool you need to put together your new Bentley Trike comes neatly organized in your box. Simply follow the steps below to put it all together.

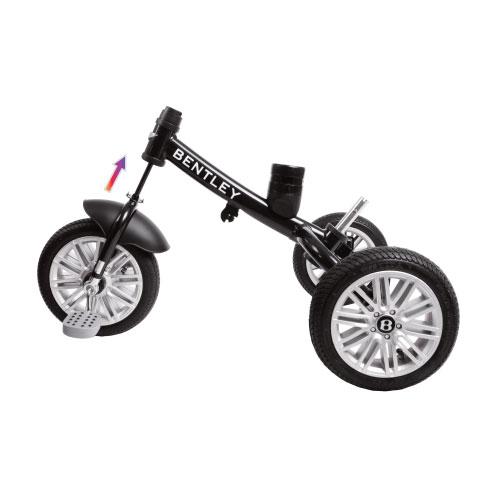

STEP 1

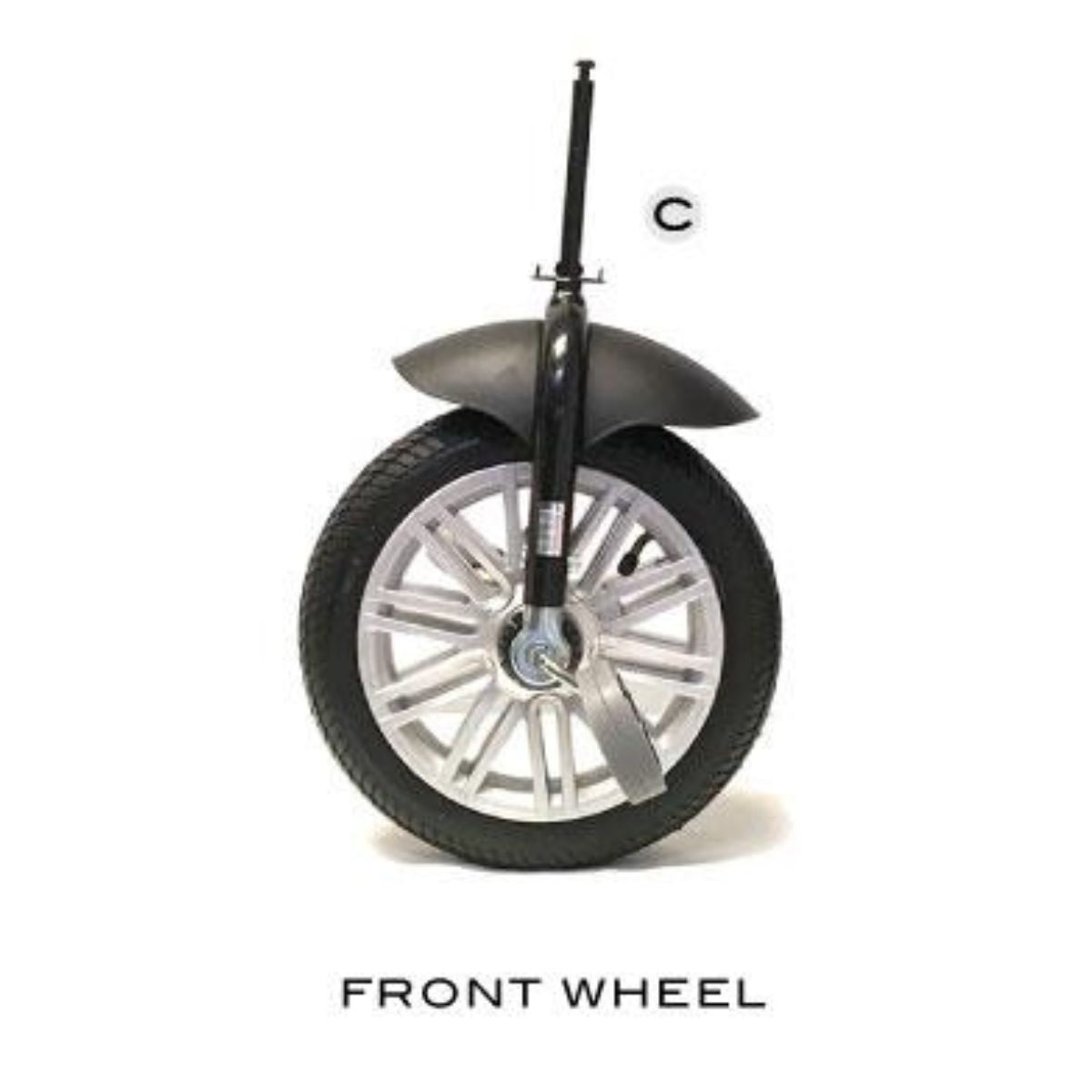

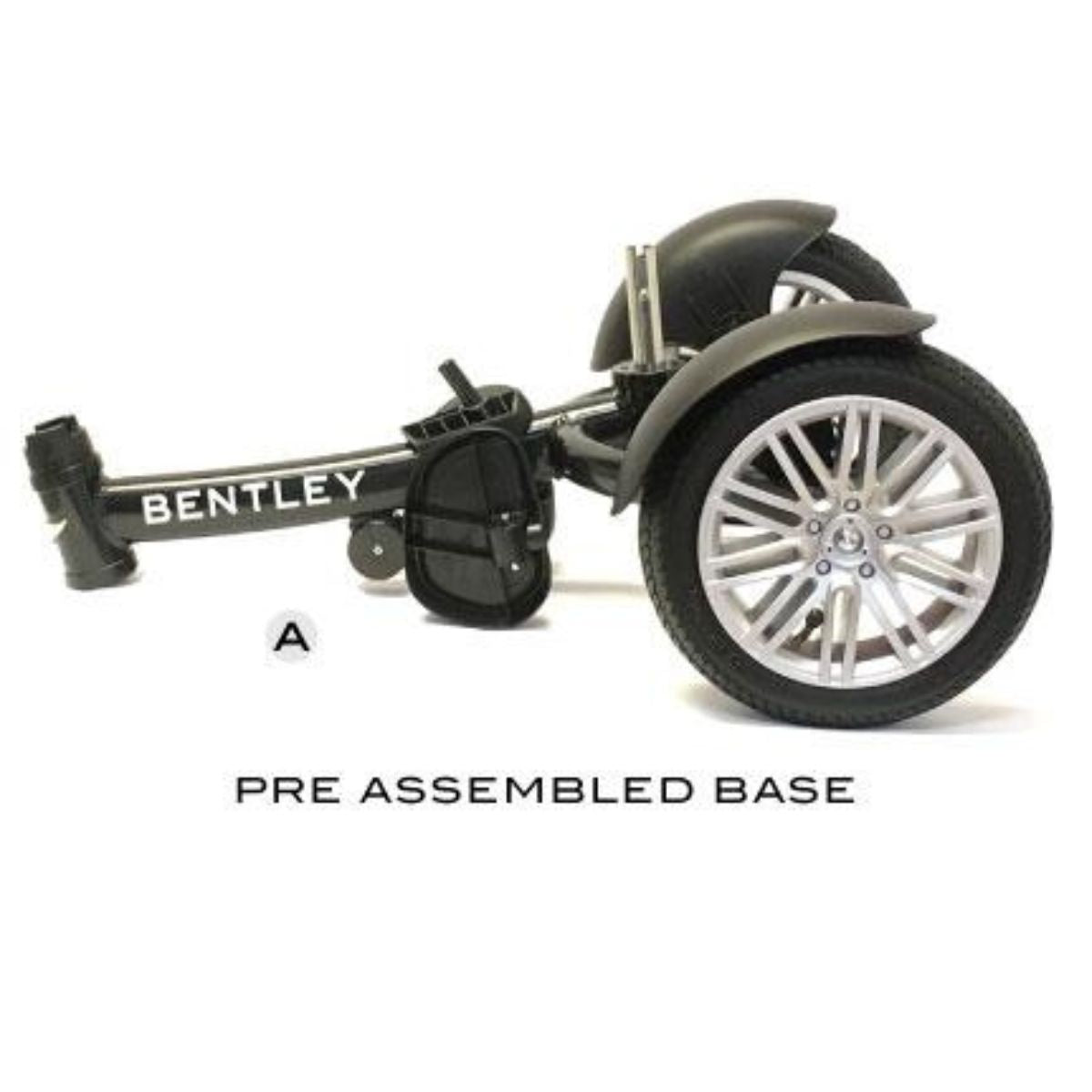

Insert the Front Wheel (C) into the frame (A).

STEP 2

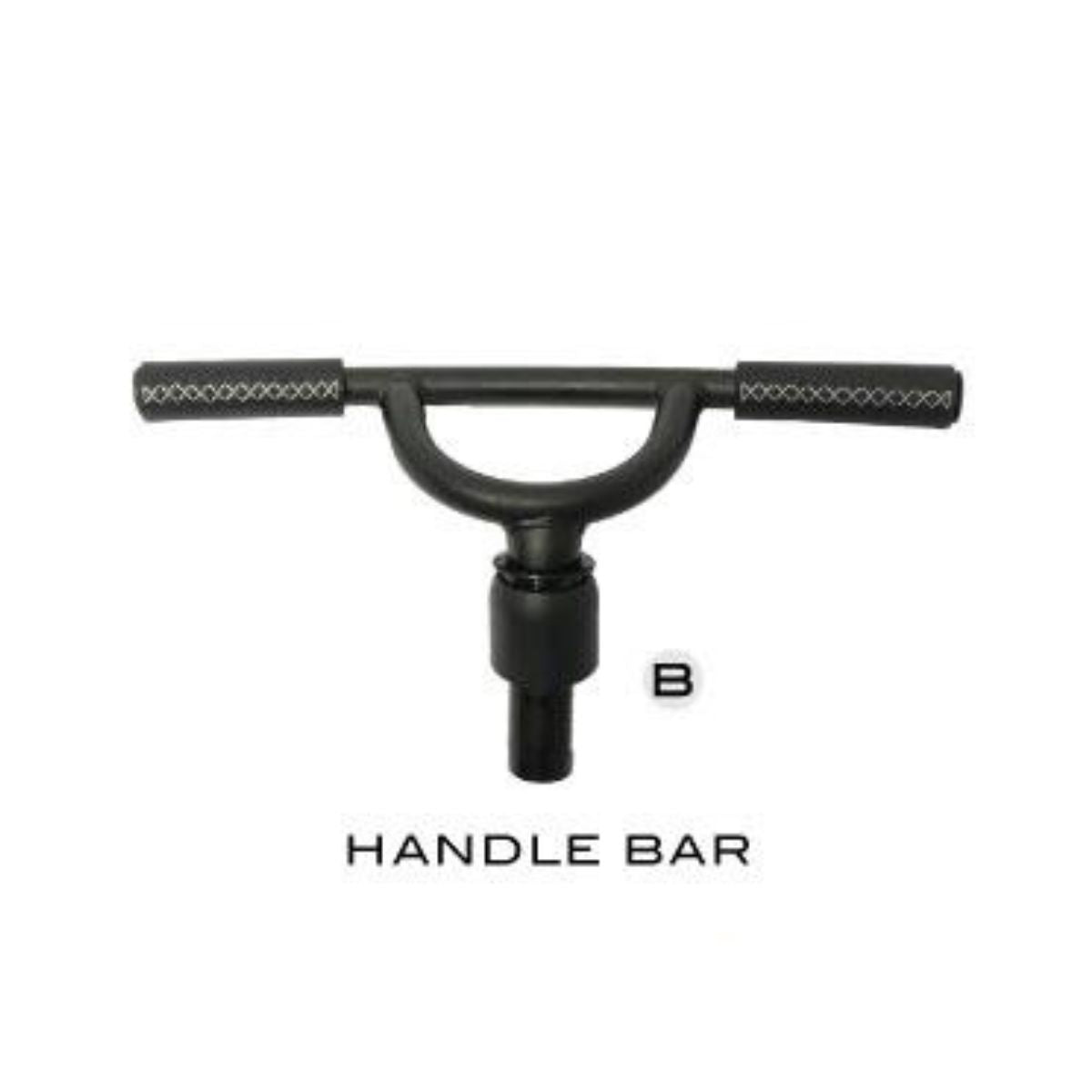

Insert the handle bar (B) into the frame (A) and tighten with the provided allen key.

STEP 2 (A)

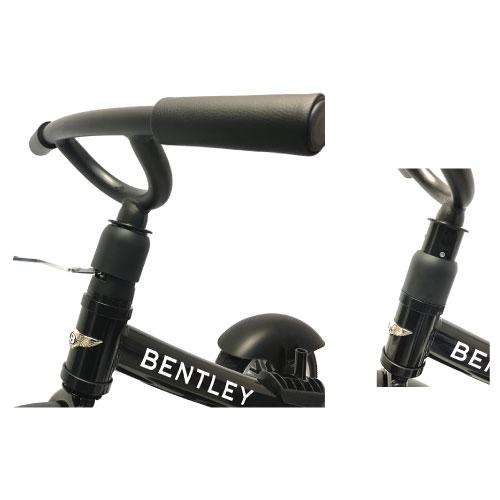

Align the handle bar and tighten the built in screw with the small allen key (tighten carefully to avoid stripping the thread on the screw). Pull down and snap the cover in place after finishing.

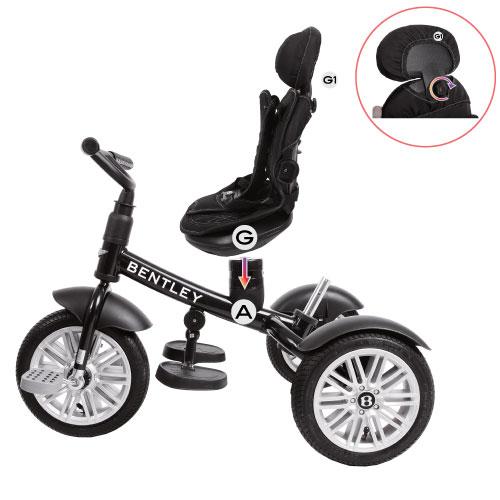

STEP 3

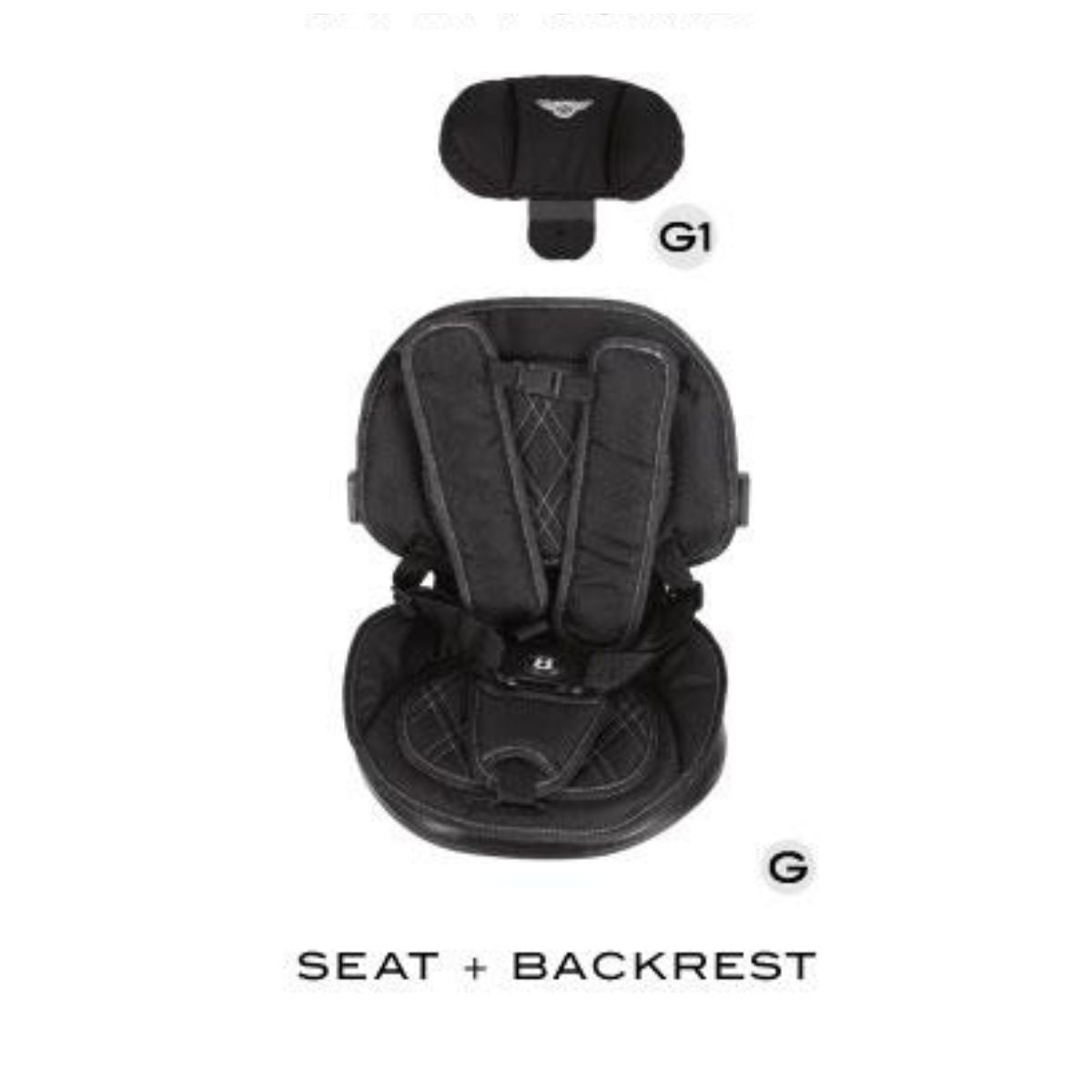

Install the seat (g) onto the frame (a) and the headrest bracket (g1) into the seat (G). Tighten the plastic bolt to ensure a secure fit.

STEP 4

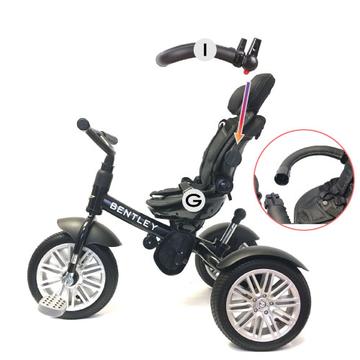

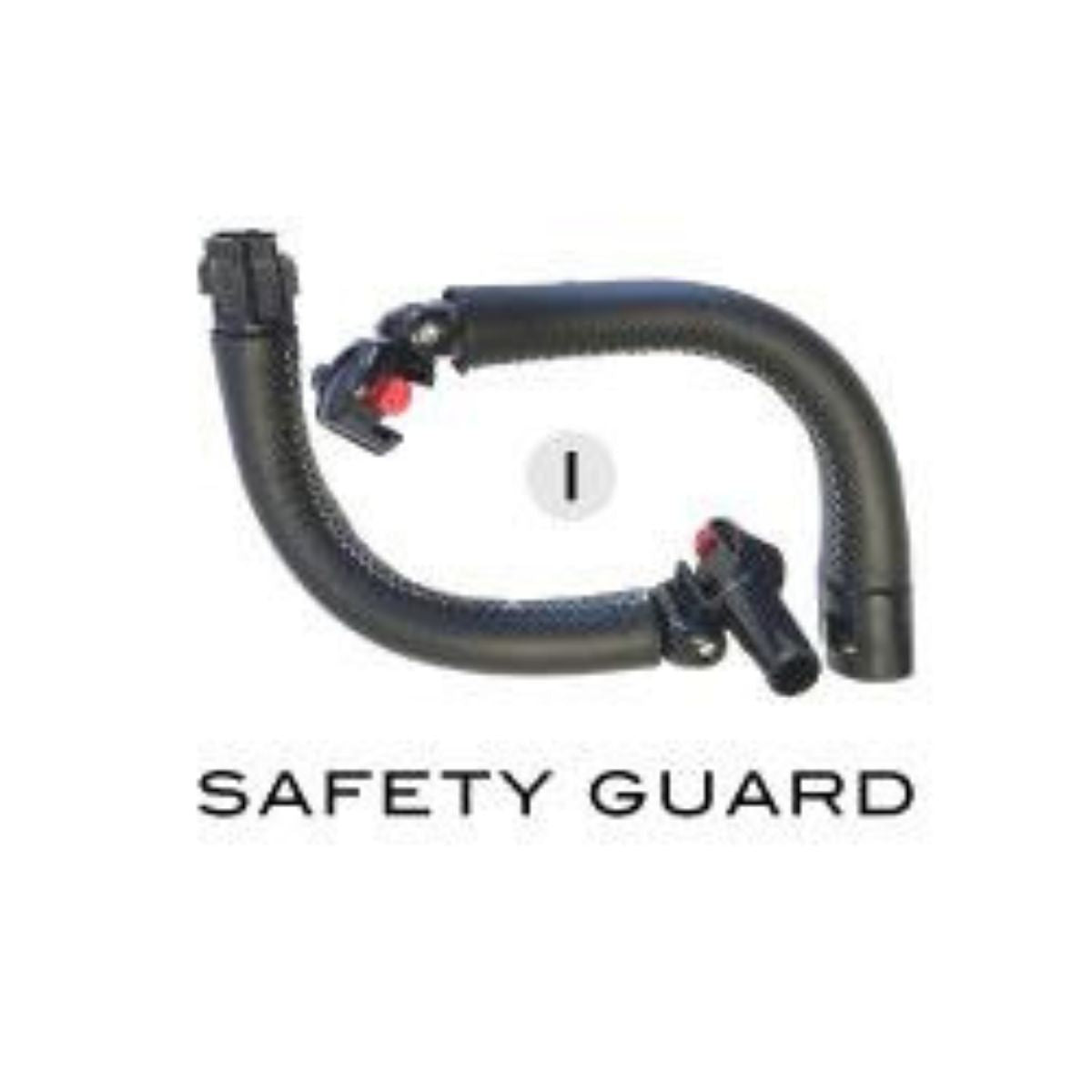

Insert the safety guard (I) into the seat (G).

The safety guard snaps in at the front. press down on both sides to release and open.

STEP 5

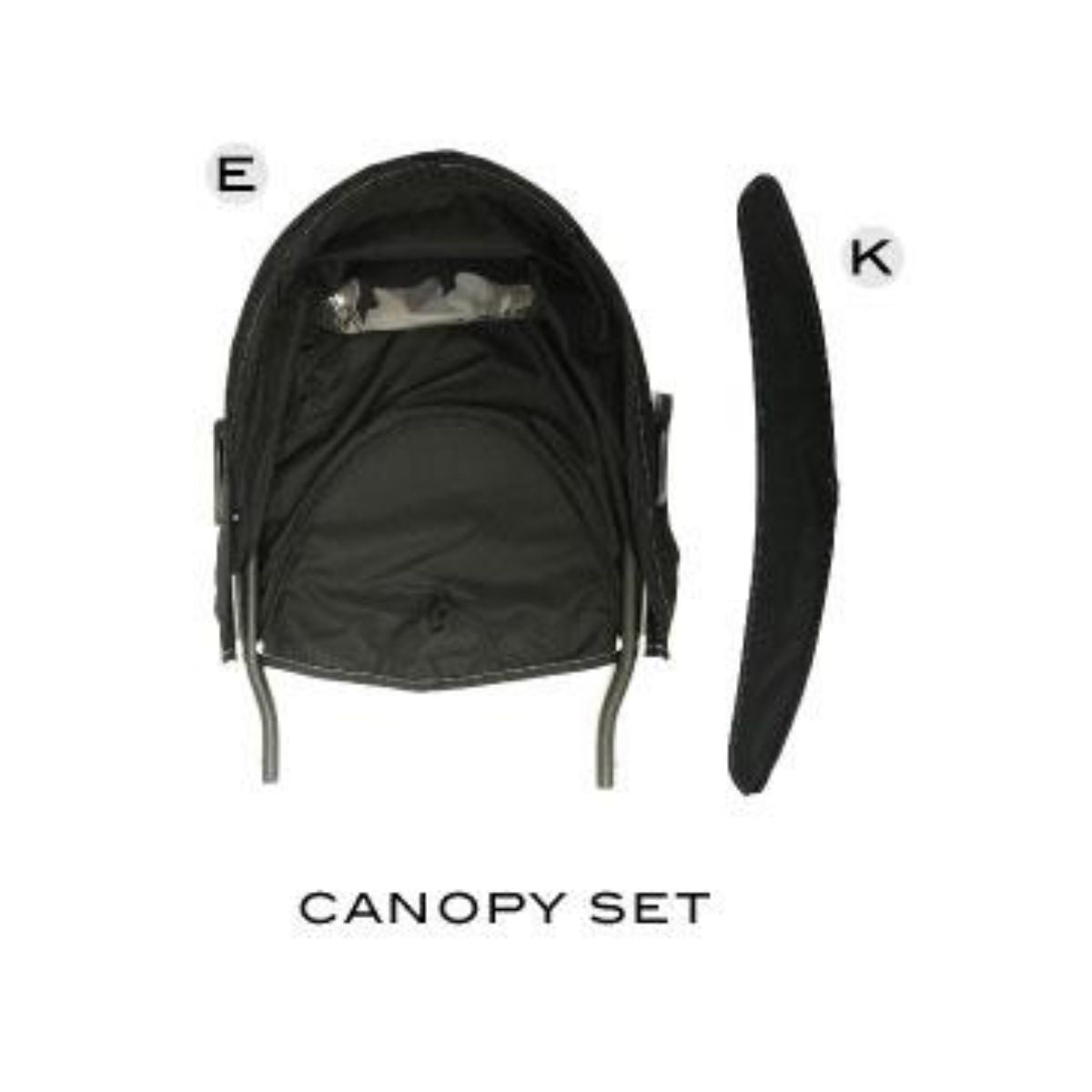

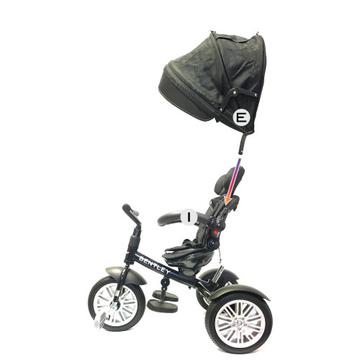

Insert the canopy (e) into the sides of the safety guard (i).

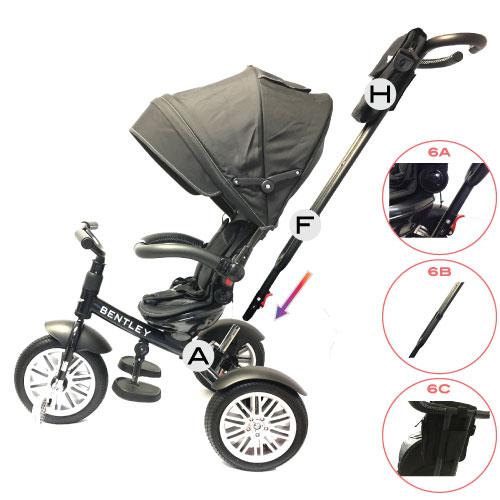

STEP 6

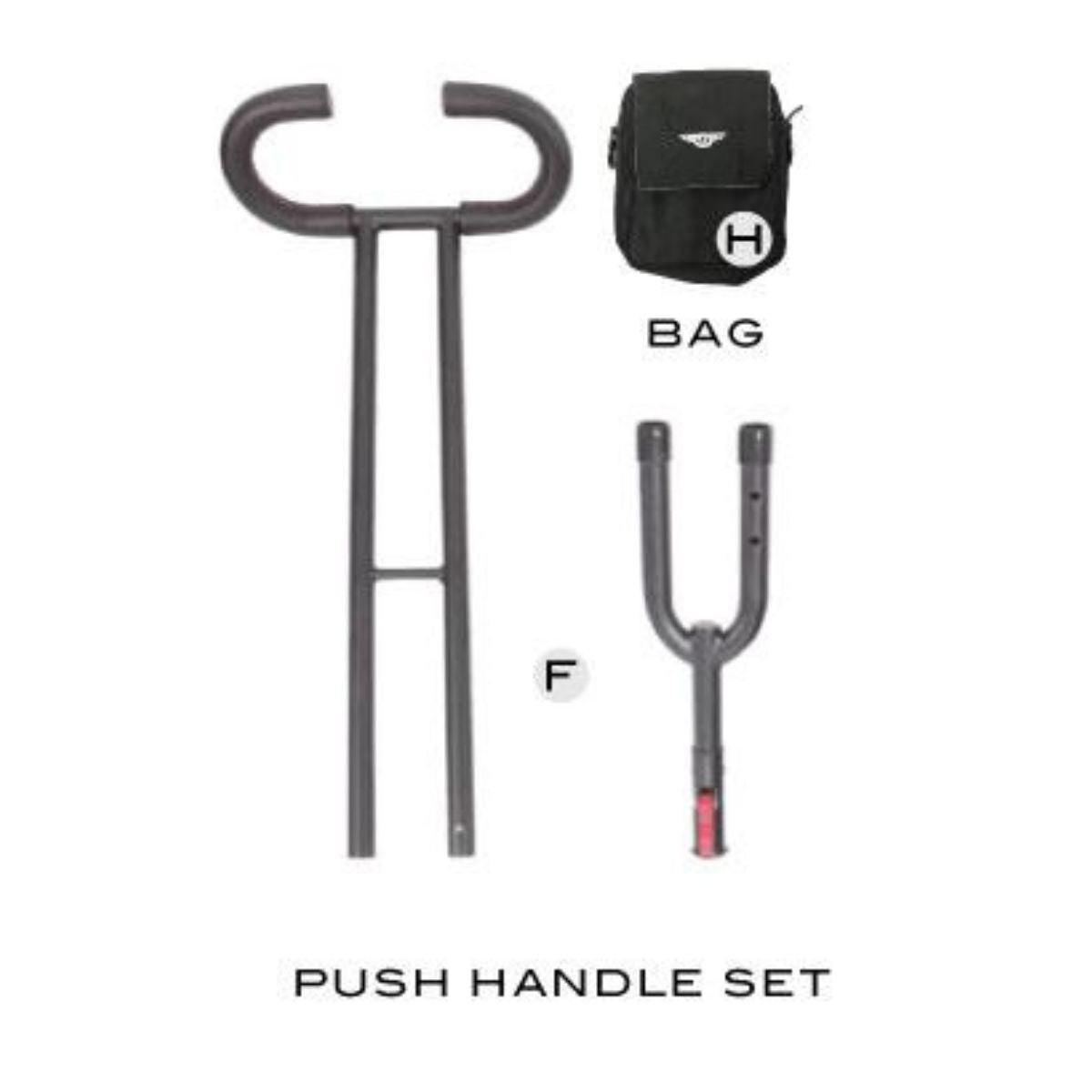

Insert the pushbar (f) into the back of the frame (a), lock the lever by pulling it up, and install the bag (h) onto the push bar (f).

6A: Insert the push handle (f) into the frame (a) with the red lever down. Turn the lever upwards to lock in the push handle bar.

6B: Insert the top part of the push handle into the bottom part. This can be locked in 2 positions and adjusted for height.

STEP 7

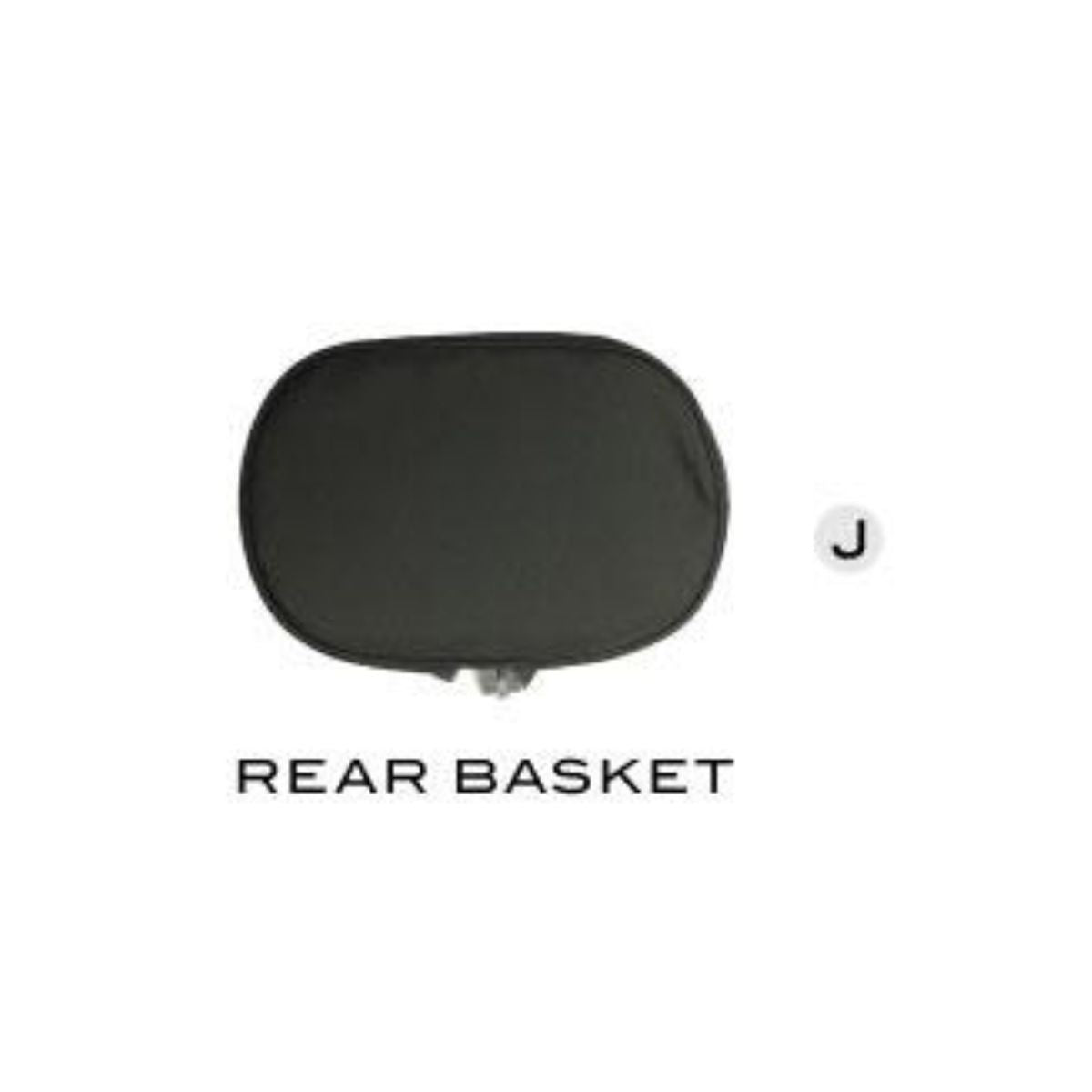

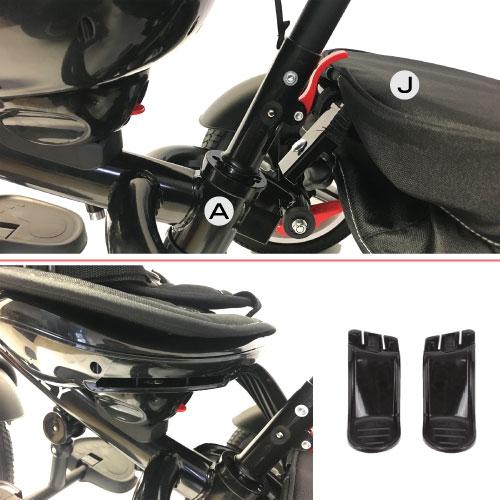

Insert the basket (j) onto the back of the frame (a). It will self tighten with the magnetic clip that is built in.

Then insert the infant footrests if needed into the slots under the seat cushion as pictured above.
